Electrical Grounding Detail Drawings – DWG Set

[html]
<div style=”font-family: Arial, sans-serif; padding: 15px; border: 1px solid #ddd; border-radius: 10px; box-shadow: 0 0 10px rgba(0,0,0,0.08); background-color: #fafafa;”>

<h2 style=”color: #2c3e50; font-size: 22px;”>Electrical Grounding Detail Drawings – DWG Format</h2>

<p style=”font-size: 15px; color: #444;”>
This product includes a comprehensive set of <strong>electrical grounding system detail drawings</strong> in <strong>DWG format</strong>, suitable for use in residential, commercial, and industrial projects.
<br>Prepared with clarity and precision, the drawings are ready for integration into your project documentation or permit files.
</p>

<h3 style=”color: #34495e; font-size: 18px;”>Included Details:</h3>
<ul style=”font-size: 15px; color: #444; line-height: 1.6;”>

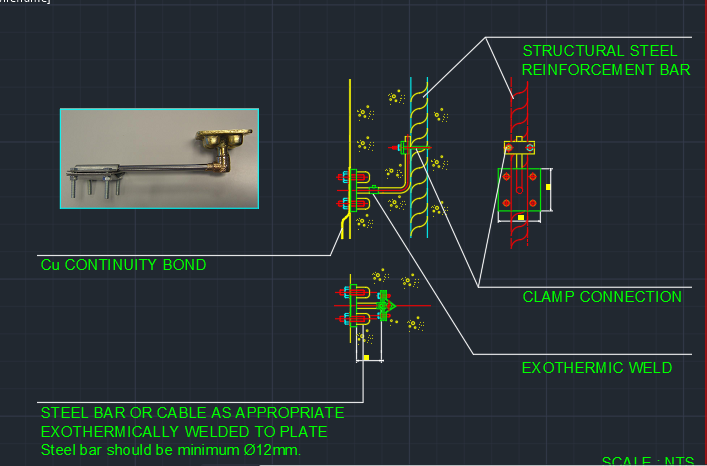

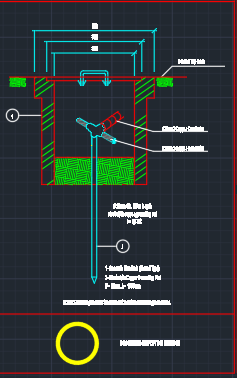

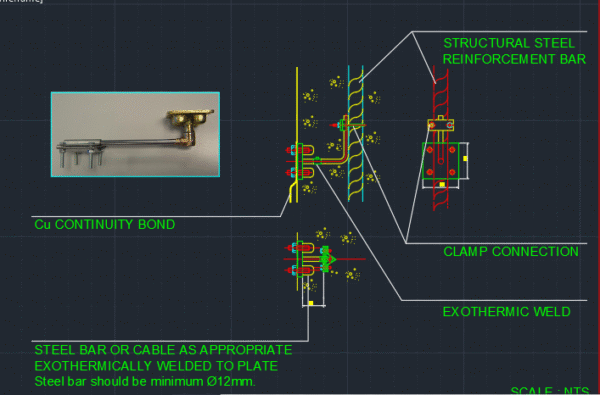

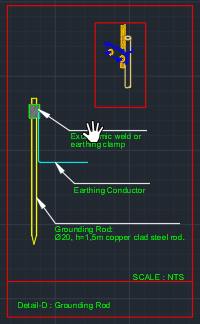

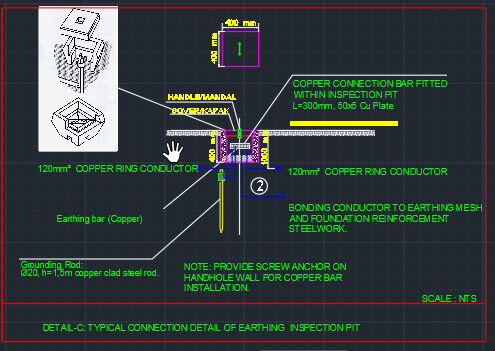

<li>Grounding rods and conductor connections</li>
<li>Lightning protection system components</li>
<li>Roof conductor layouts and clamps</li>
<li>Wall-mounted down conductors and fasteners</li>

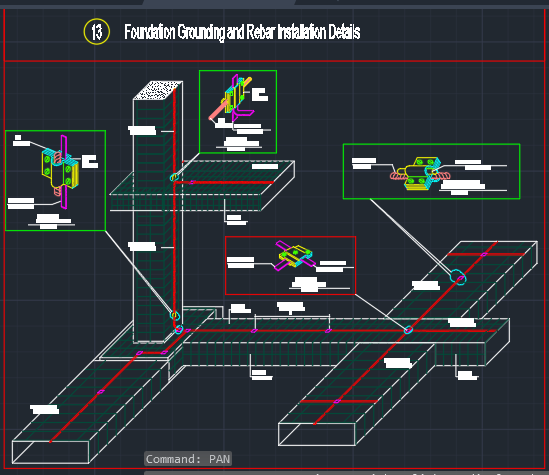

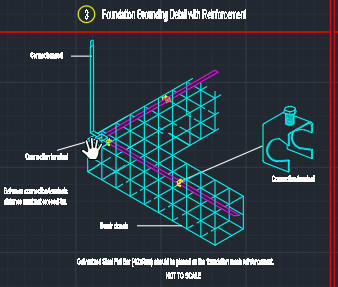

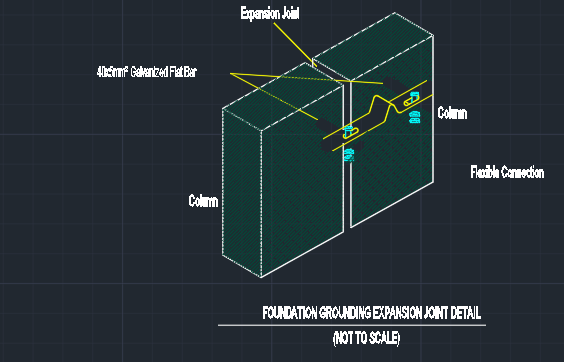

<li>Foundation grounding ring system</li>

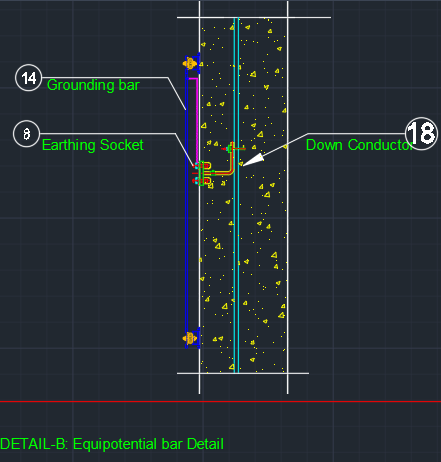

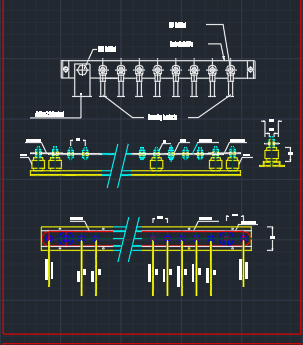

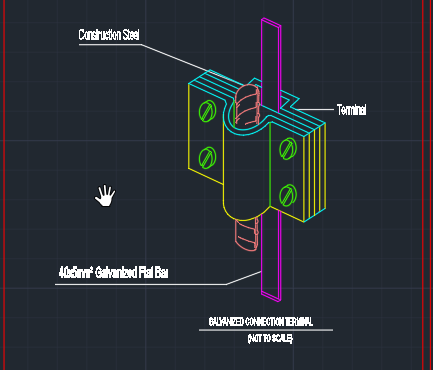

<li>Equipotential bonding configurations</li>

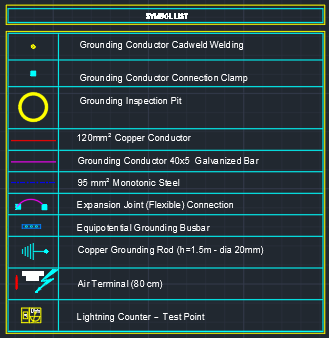

<li>Notes and legends for project documentation</li>
</ul>

<h3 style=”color: #34495e; font-size: 18px;”>Features:</h3>
<ul style=”font-size: 15px; color: #444; line-height: 1.6;”>
<li>Fully editable DWG files</li>
<li>Scalable and CAD-ready details</li>
<li>Compatible with AutoCAD and similar platforms</li>
</ul>

<p style=”font-size: 15px; color: #444;”>
Ideal for electrical engineers, consultants, and contractors looking to save time with ready-made grounding details.
</p>

</div>
[/html]
